Page 10 of 16
Re: MINELAB MANTICORE: DATA & PERFORMANCE
Posted: Sun Mar 09, 2025 9:20 am
by au pirata
For 8 years it is my job..

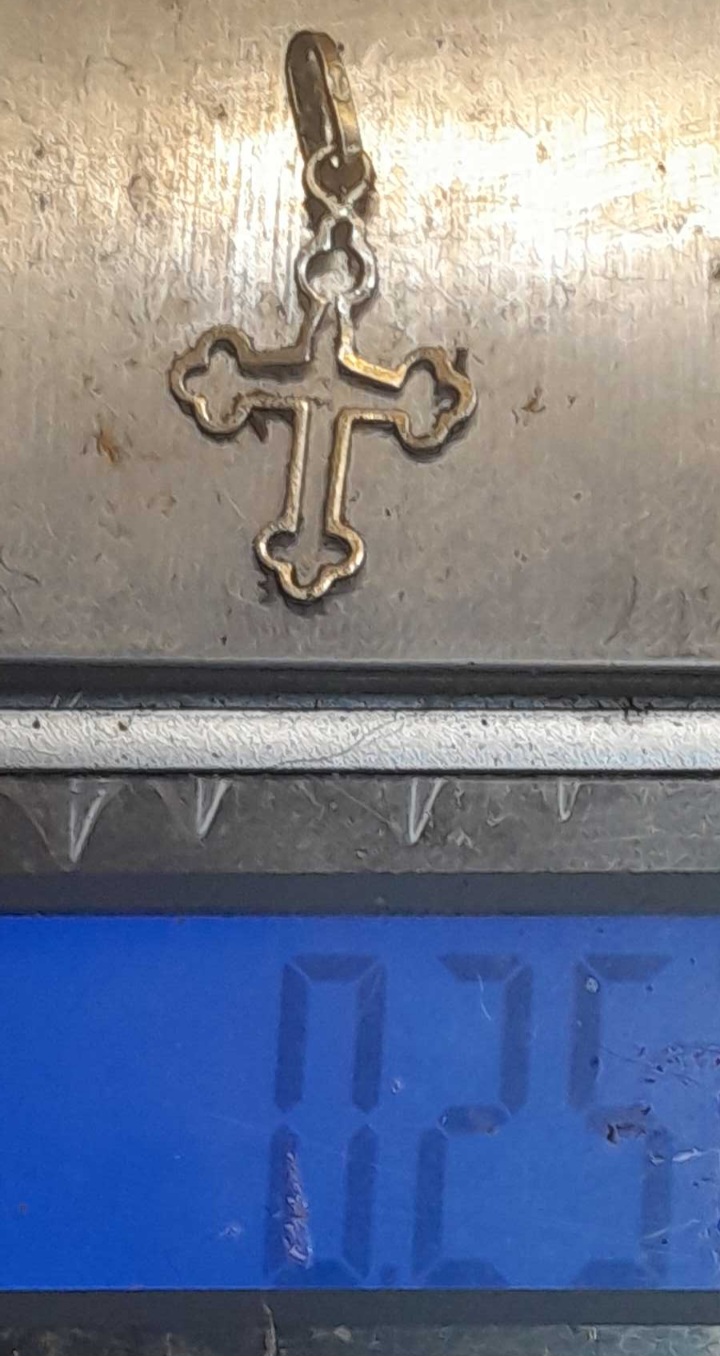

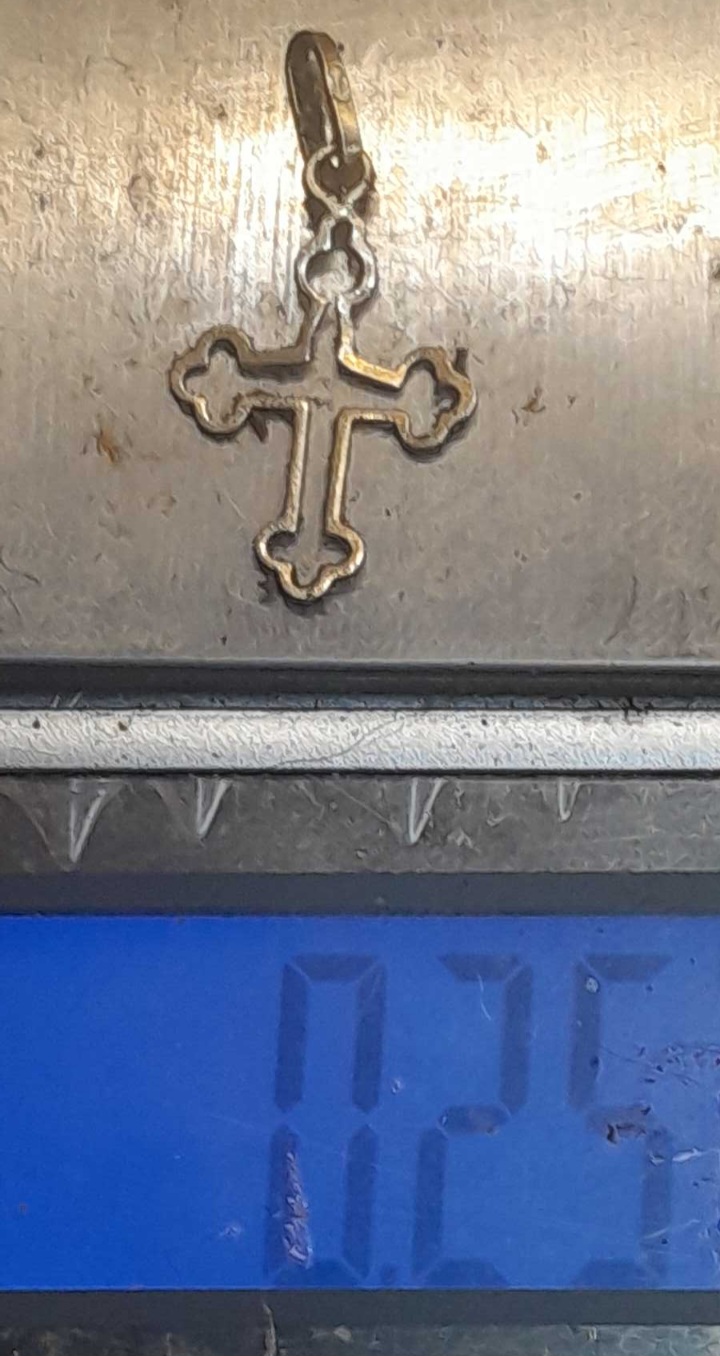

Gold getting smaller....also ,got a 0.5g bracelet but only gold platted

- 2025-3-9 10-11-43.jpg (220.92 KiB) Viewed 14254 times
Re: MINELAB MANTICORE: DATA & PERFORMANCE
Posted: Sun Mar 09, 2025 1:22 pm
by NASA-Tom
This is spectacular!!! And you are finding gold that could never be found before. That smaller coil is allowing you to be LESS affected by your black-sand mineralization.
Re: MINELAB MANTICORE: DATA & PERFORMANCE
Posted: Sun Mar 09, 2025 2:55 pm
by au pirata
Yes this coil is MAGIC...target was a solid 1.thinking
It was shallow I scooped 5 cm of sand an clay
But it was actually about 7cm.
With all metal off It does not register..in air test..
I feel now the coil an machine are running at optimum
Performance/depth...
I am using my old equinox headphones, what advantage
Would be gained by using a specialised pair...(I do not
Have the sound of waves,here on the med)
Re: MINELAB MANTICORE: DATA & PERFORMANCE
Posted: Sun Mar 09, 2025 11:24 pm
by NASA-Tom
There will not be much of a difference.....switching to a better set of headphones..... in your case. IF you were in a noisy environment....... THEN a different set of headphones would have formidable merit.
Minelab coils for Manticore
Posted: Wed Mar 12, 2025 12:49 am
by glasartisan
Hi there Tom, I see Minelab is having a sale on their coils. I was thinking of taking advantage of getting 2 coils, 12 X15 for sure and either the M8 or the M9. They are for my Manticore. I don't hunt the salt water, strictly freshwater lakes here. Do you think the M9 will get the small micro gold just as well as the M8 at freshwater beaches? Also, I know I will be gaining coverage area with the 12X15 coil over the 11 inch, but can I expect maybe a couple inches depth wise over the 11inch coil? Thanks, Steve
Re: MINELAB MANTICORE: DATA & PERFORMANCE
Posted: Wed Mar 12, 2025 11:19 am
by NASA-Tom
Hi Steve,
The smaller (M8) coil is more sensitive to tiny gold.......even over the M9 coil. The smaller coil also allows you to run/drive the Sens to higher settings.
The large 12" x 15" coil goes deeper on Silver Dollar sized (and larger) targets. . , . , . , . , . and that is only if there is low-mineralization!
Minelab 5X8 coil
Posted: Thu Mar 13, 2025 1:01 pm
by glasartisan
Thank you Tom, if I get the 5X8 coil, would you say for use only in freshwater that I should be using ATLC with the use of the prospecting audio when looking for gold and other low conductors? I assume I should stay away from the beach modes since no salt in my water. Also on small jewelry gold, should I be looking out for very low VDI numbers that show up as 1,2 or 3 on screen? Also I m assuming I should be working with the horseshoe on,all metal. Thanks Tom. Steve
Re: MINELAB MANTICORE: DATA & PERFORMANCE
Posted: Fri Mar 14, 2025 6:06 pm
by NASA-Tom
Steve.......... that is correct. You do NOT want to be in any form of a SALT Mode (the Beach Modes)....... if you are inland/freshwater hunting for VERY low conductors (small gold..... which ID's: 1 - 8). All Terrain - Low Conductors is one of the best Modes for inland/non-salt. Yes..... make sure you can hear iron! You may (should) like Audio Theme: Prospecting.....the best.
Re: MINELAB MANTICORE: DATA & PERFORMANCE
Posted: Sat Mar 15, 2025 2:44 pm
by glasartisan
Very well Tom, I appreciate your knowledgeable tips and settings on the manticore. I will be getting the 5X8 coil. Thanks, Steve
Re: MINELAB MANTICORE: DATA & PERFORMANCE
Posted: Mon Mar 17, 2025 11:50 am
by au pirata

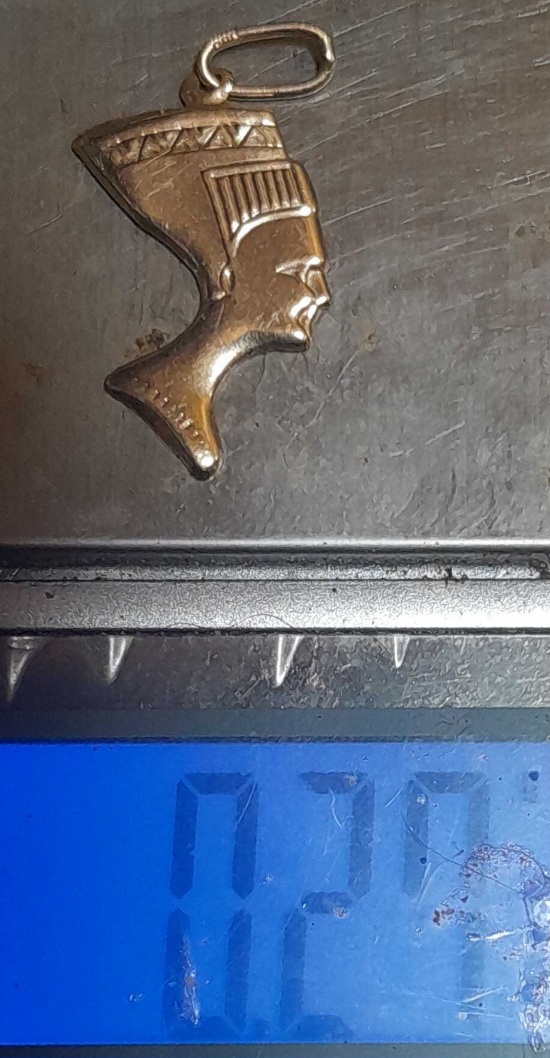

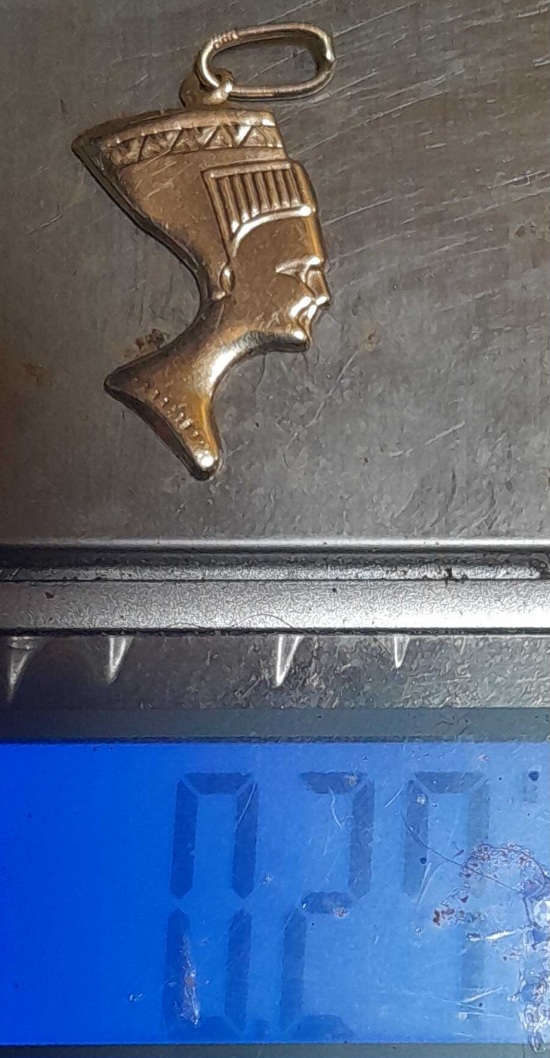

Another 1 TDI....

- 2025-3-17 12-29-48.jpg (181.57 KiB) Viewed 13470 times
